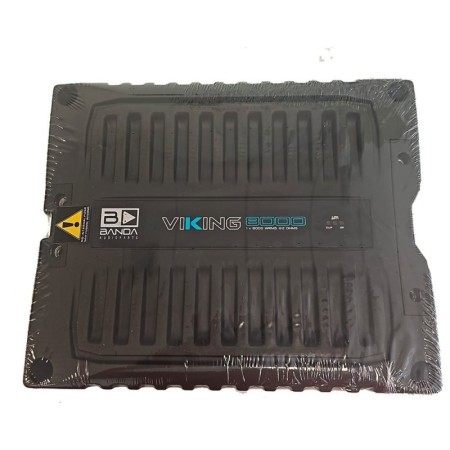

Banda Audioparts BANDA VIKING 8000 2OHM
Banda Audioparts BANDA VIKING 8000 2OHM version 2023
Banda Audioparts BANDA VIKING 8000 2OHM version 2023
Class |
D |
Total Power 14,4 @ 2 Ohms |
9500 WRMS |
Total Power 14,4 @ 4 Ohms |
6800 WRMS |
Total Power 12,6 @ 2 Ohms |
8000 WRMS |
Total Power 12,6 @ 4 Ohms |
5800 WRMS |
Efficiency @ 4 Ohms |
78% |
Efficiency @ 2 Ohms |
70% |
Input Voltage |
9 – 15V |
Input Impedance |
22K Ohms |
THD+Noise |
<1% |
Input Sensitivity |
230 to 710mV |
SNR |
80dB |
Frequency Response |
18 to 8kHz (-3dBs) |
HPF (High Pass Filter) |
20 – 80Hz @ 12dB/octave Linkwitz-Riley |
LPF (Low Pass Filter) |
80 – 8kHz @ 12dB/octave Linkwitz-Riley |
Recommended Fuse |
400 A |
Current at Rest |
4,5 A |
Average Current Draw (Sinusoidal) |
890 A |
Average Current Draw (Music) |
400 A |
Power Wire Gauge (min. Recommended) |
50mm / 0 AWG |
Speaker Wire Gauge (min. Recommended) |
2 x 6mm / 2 x 3 AWG |
Weight (Lb) |
|
Height (in) |
|
Width (in) |
|
Depth (in) |
